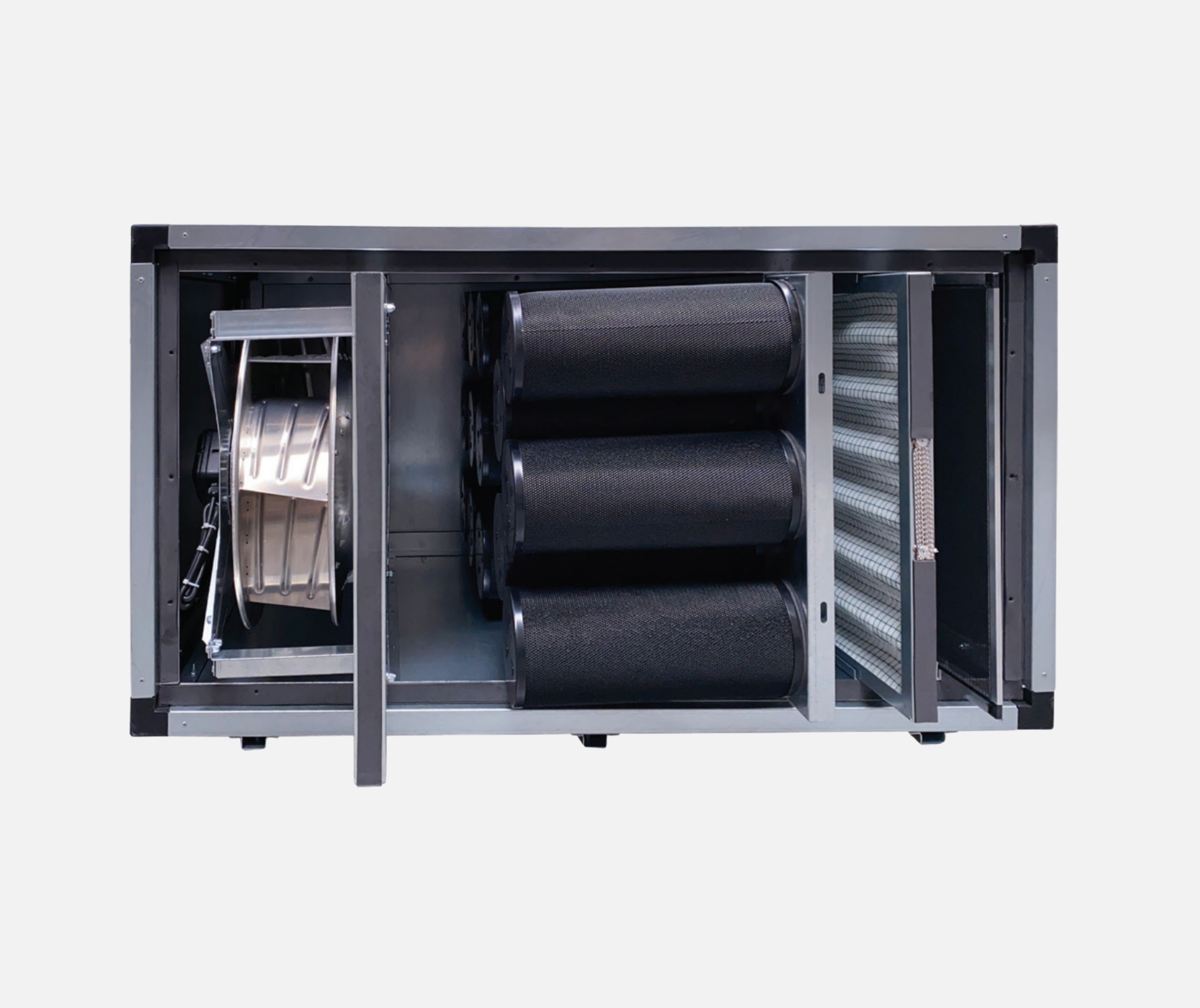

NMFKF – Kitchen Exhaust Fan with Active Carbon Filter

NMFKF fans are designed to prevent the hood exhaust air from disturbing the guests in industrial and commercial kitchens such as hotel, restaurant kitchens. Sliding designed filter and fan provide easy cleaning and maintenance.

Technical Features

MOTOR INSULATION CLASS	F CLASS
MOTOR PROTECTION CLASS	IP 44
MOTOR EFFICIENCY CLASS	–
MOTOR ENCLOSURE TYPE	OUTER ROTOR ENGINE
MOTOR BRAND	KAYI
BODY MATERIAL	GALVANIZED SHEET METAL
BODY COATING	ELECTROSTATIC POWDER COATING
IMPELLER MATERIAL	GALVANIZED SHEET METAL
DUTY CYCLE	IEC Duty Cycle-S1
WORKING TEMPERATURE	-20 – +50 °C
STANDARDS	IEC-60335-2-80, ISO 1940-1

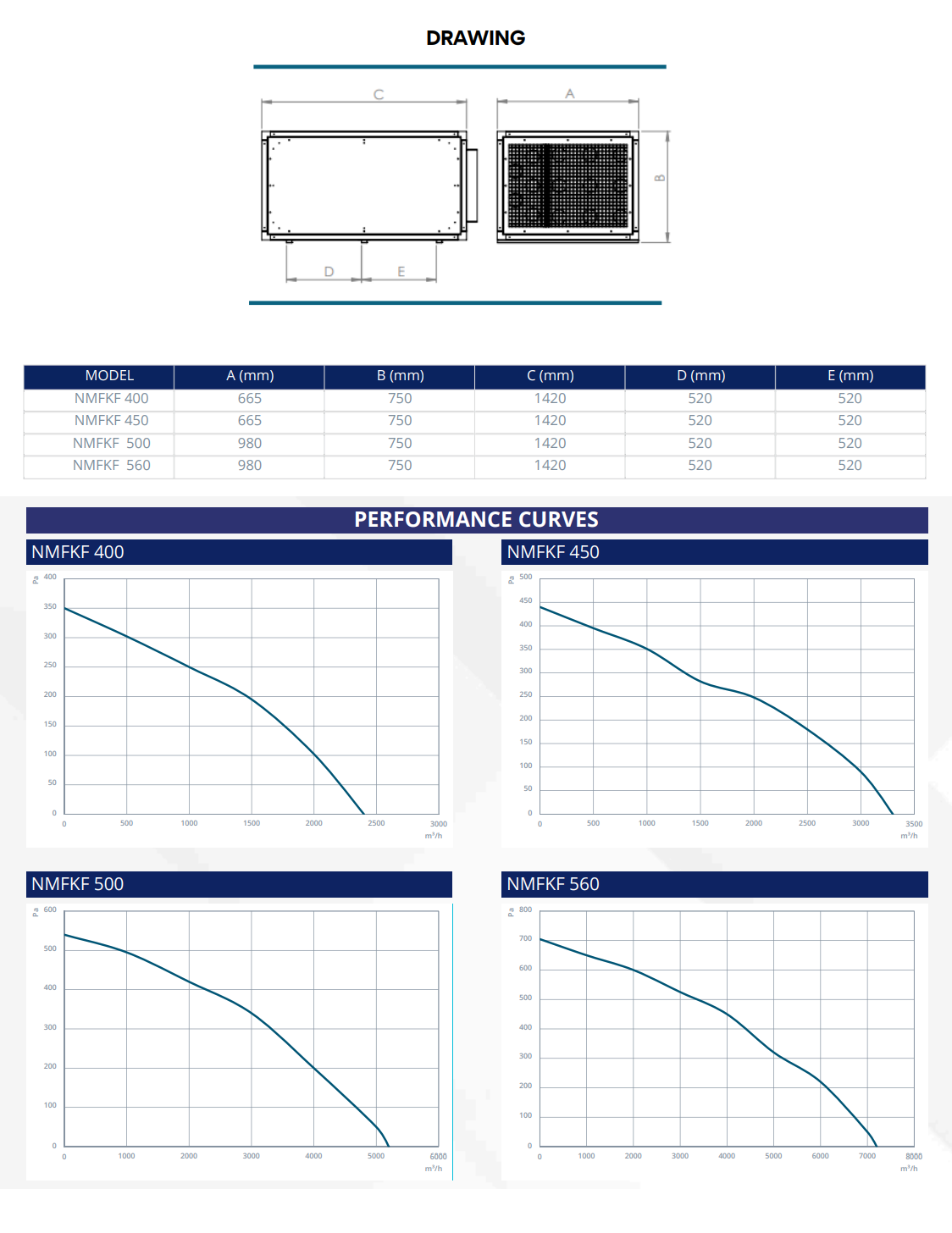

TECHNICAL VALUES

MODEL	FLOW (m³/h)	AIR SPEED (m/s)	THRUST (N)	TRANSFER (d/dk)	MOTOR POWER (kW)	SOUND LEVEL (dB(A)-1m)
NMFKF 400	230	50	380	1.362	2.400	74
NMFKF 450	230	50	690	1.367	3.300	77
NMFKF 500	230-380	50	830	1.364	5.200	82
NMFKF 560	380	50	1.460	1.369	7.200	83
