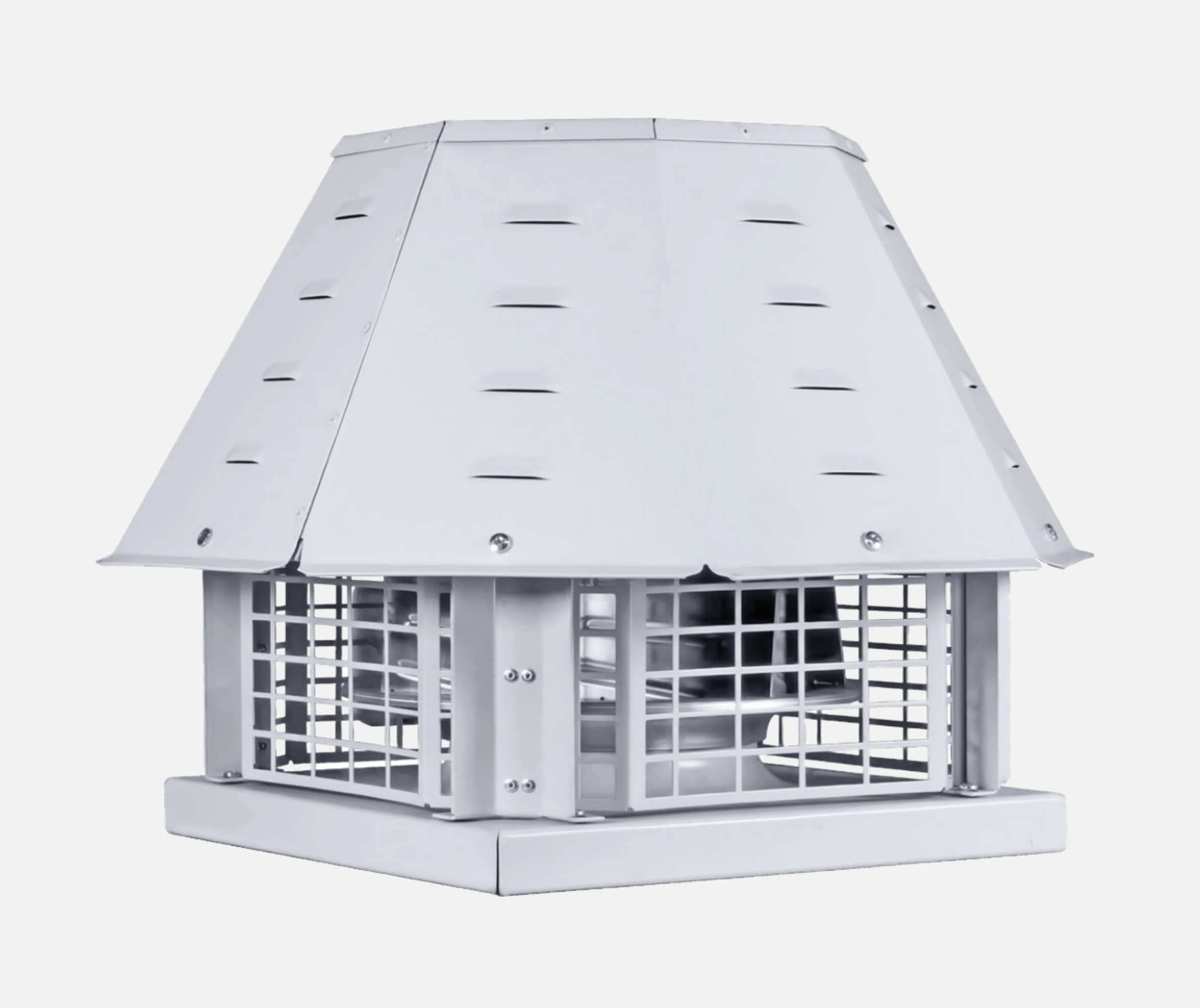

NCF-Y Roof Type Horizontal Discharge Centrifugal Fan With External Motor

Thanks to the fact that the NCF-Y fans are out of the air flow of the engine, they protect the engine from factors such as dust and oil in the air that can damage the engine and provide continuous ventilation.

Technical Features

TECHNICAL FEATURES

MOTOR INSULATION CLASS	F CLASS
MOTOR PROTECTION CLASS	IP 55
MOTOR EFFICIENCY CLASS	IE3
MOTOR ENCLOSURE TYPE	TEFC
MOTOR BRAND	GAMAK-VOLT-WAT
BODY MATERIAL	GALVANIZED SHEET METAL
BODY COATING	ELECTROSTATIC POWDER COATING
IMPELLER MATERIAL	ALUMINIUM
DUTY CYCLE	IEC Duty Cycle-S1
WORKING TEMPERATURE	-20 – +50 °C
STANDARDS	IEC-60335-2-80, ISO 1940-1

TECHNICAL VALUES

MODEL	VOLTAGE (V)	FREQUENCY (Hz)	POWER (kW)	CYCLE (d/dk)	FLOW (m³/h)	SOUND LEVEL (dB(A)-1m)
NCF-Y 280	380	50	0,18	1.450	1.100	73
NCF-Y 315	380	50	0,25	1.469	1.600	73
NCF-Y 355	380	50	0,37	1.471	2.300	75
NCF-Y 400	380	50	0,55	1.478	3.300	78
NCF-Y 450	380	50	0,75	1.454	5.000	70
NCF-Y 500	380	50	1,10	1.462	7.000	83
NCF-Y 560	380	50	1,50	1.464	9.800	74
