Description
Technical Specifications
| MOTOR TYPE | EXTERNAL ROTOR, ENCLOSED |
| OPERATING VOLTAGE | 230 V – 50 HZ |
| HOUSING MATERIAL | GALVANISED STEEL |
| BLADE DESIGN | BACKWARD CURVED |
| MAX. AIR TEMPERATURE | 120 °C |
| MOTOR BEARINGS | BALL BEARINGS, MAINTENANCE-FREE |

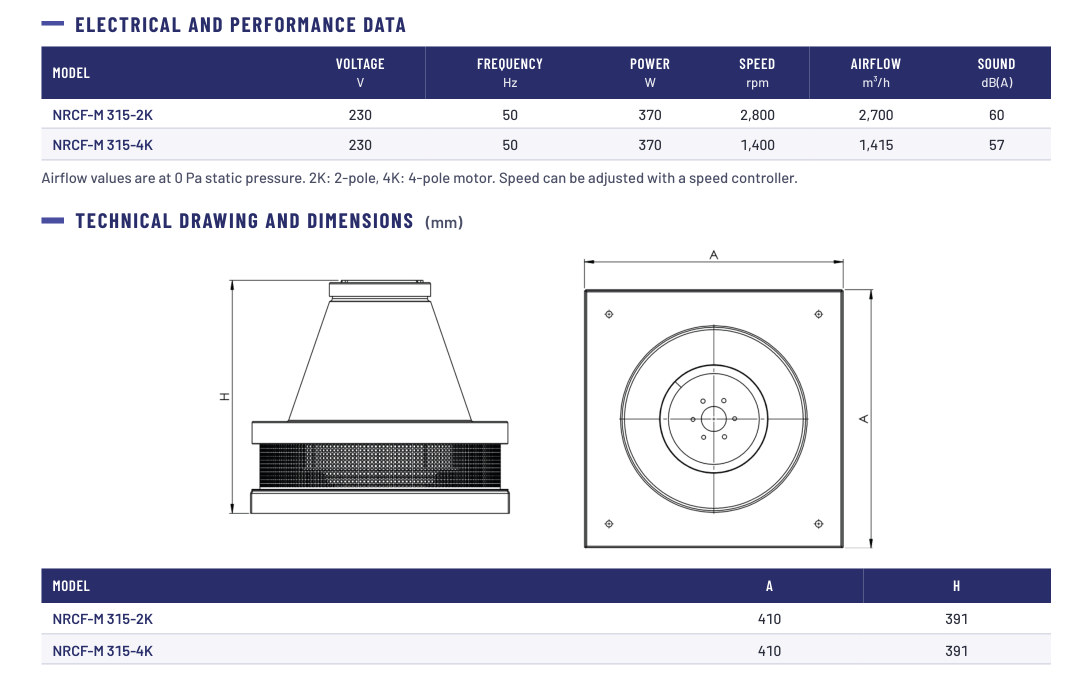

Technical Data
| MODEL | VOLTAGE (V) |
FREQUENCY (Hz) |
POWER (W) |
SPEED (rpm) |
AIRFLOW (m³/h) |
SOUND LEVEL (dB(A)) |
| NRCF-M 315-2K | 230 | 50 | 370 | 2,800 | 2,700 | 60 |
| NRCF-M 315-4K | 230 | 50 | 370 | 1,400 | 1,415 | 57 |
Airflow values are at 0 Pa static pressure. 2K: 2-pole, 4K: 4-pole motor. Speed can be adjusted with a speed controller.
